Aftermarket Replacement Shaker Screen for Derrick 626 PMD – API RP 13C Compliant

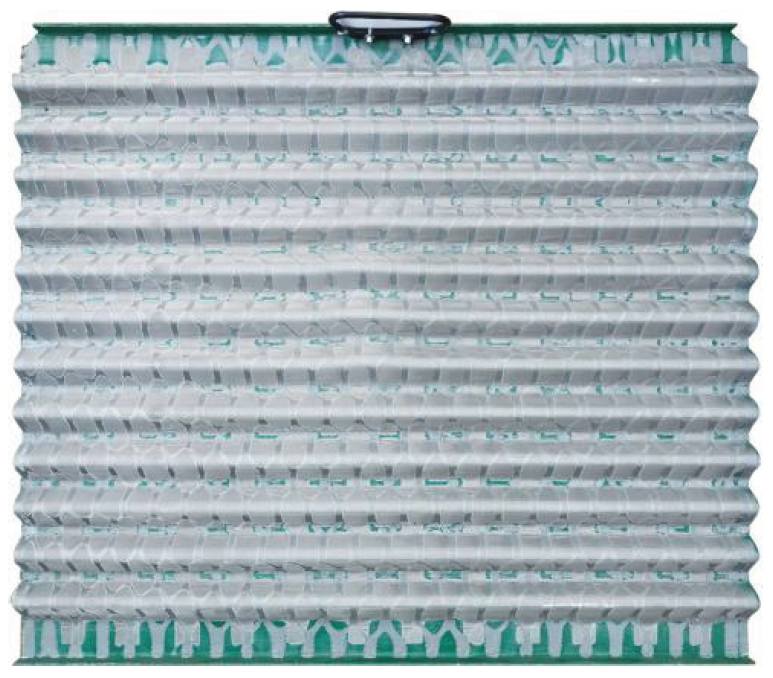

Derrick 626 PMD Replacement Shaker Screen

High-efficiency pyramid replacement screen engineered for Derrick DP600 and DP600 VE vapor extraction shakers. Designed to maximise flow rate, improve cut-point accuracy, and lower overall mud loss – without modifying your existing shaker system.

Key Features

• API RP 13C (ISO 13501) Compliant – tested for cut point, conductance & open area

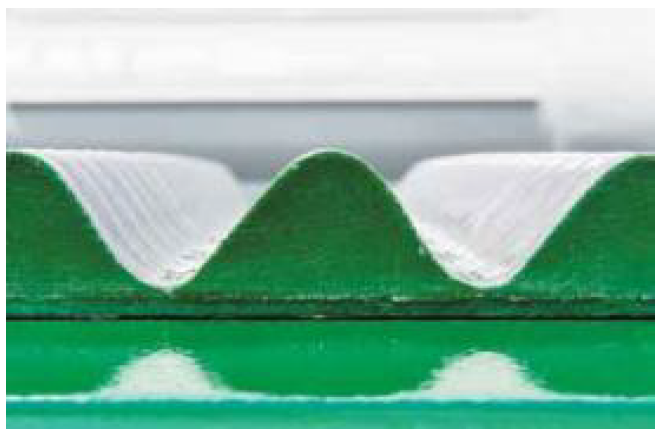

• Pyramid (PMD) Screen Design – increases usable screening area & improves fluid throughput

• Mesh Cloth Options

  • DX (Extra Fine): maximises capacity and reduces near-size blinding

  • HP (High Performance): slotted openings for higher flow without loss of separation

  • DF (Fine): extended wear life and consistent cut-point stability

• Drop-In OEM Replacement – compatible with Derrick 626 / DP600 / DP600 VE

• Durable Construction – SS304 / SS316 screen mesh with DC03 steel frame

• Mesh Range: API 20–325

Specifications

Performance Benefits

✔ Higher shaker capacity & solids throughput
✔ Increased conductance for faster fluid processing
✔ Pyramid design improves separation & reduces mud losses
✔ Lightweight 5kg screen for easier handling & installation
✔ Fully compliant labeling — API number + conductance rating

API Sizes Available

API 20–325 with certified D100 micron values and conductance measurements. Available in DX, HP & DF cloth to match drilling requirements including oil & gas, geothermal, HDD, and mining applications.

Compatibility Notice

This screen is a replacement product manufactured for Derrick-compatible equipment. It is not an original Derrick® product, but is engineered for full functional compatibility with DP600-series shakers.
