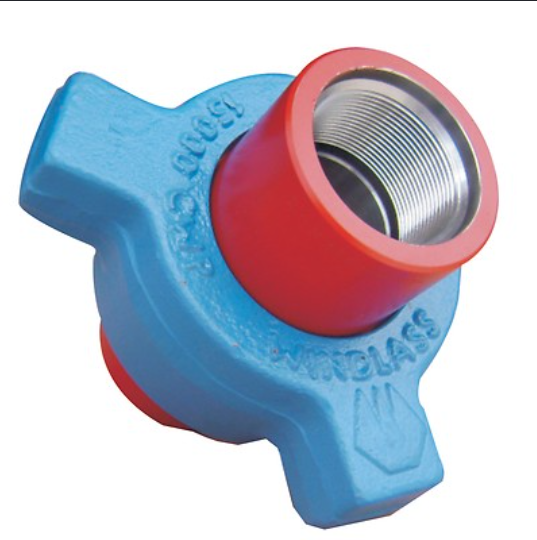

2" FIG 1502 Hammer Union – Threaded – Standard Service

The 2" FIG 1502 Hammer Union is a high-pressure connection designed for demanding drilling, oilfield, well service and pressure-pumping applications where a secure, reliable and easily assembled connection is required.

Featuring a threaded-end configuration, the union allows high-pressure pipework and equipment to be quickly connected or disconnected without rotating the adjoining pipe. The hammer-style wing nut provides fast make-up and breakout in field applications.

FIG 1502 unions are commonly used on high-pressure treating lines, cementing lines, manifold systems, mud systems and other well-service equipment.

Key Features

• Nominal Size: 2"
• Figure: FIG 1502
• Connection: Threaded
• Service: Standard Service
• Heavy-duty construction for high-pressure applications
• Hammer-style wing nut for rapid make-up and breakout
• Replaceable sealing components
• Suitable for repeated assembly and disassembly
• Designed for demanding drilling and well-service environments

Typical Applications

Suitable for use in:

• Cementing and pressure-pumping lines
• High-pressure treating iron
• Drilling and well-service equipment
• Mud and fluid transfer systems
• Manifolds and high-pressure piping assemblies
• Oilfield and geothermal operations

Important

Pressure rating, thread specification, temperature range, material grade and applicable standards should be confirmed against the manufacturer's certification and technical data before installation. Hammer union components should only be connected with compatible unions of the same figure, size, pressure rating and specification.
