Insulated Mat Roll Class 4 – 36 kV

Volt Safety’s Insulated Mat Roll Class 4 36 kV provides superior electrical insulation for high-voltage environments, protecting operators from ground potential differences and step voltage. Designed for heavy-duty industrial use, this mat ensures maximum dielectric protection, flexibility, and resistance to ozone cracking — ideal for substations, control rooms, and switchboard platforms.

✅ Key Features:

• Class: 4

• Maximum Use Voltage AC: 36,000 V

• Maximum Use Voltage DC: 54,000 V

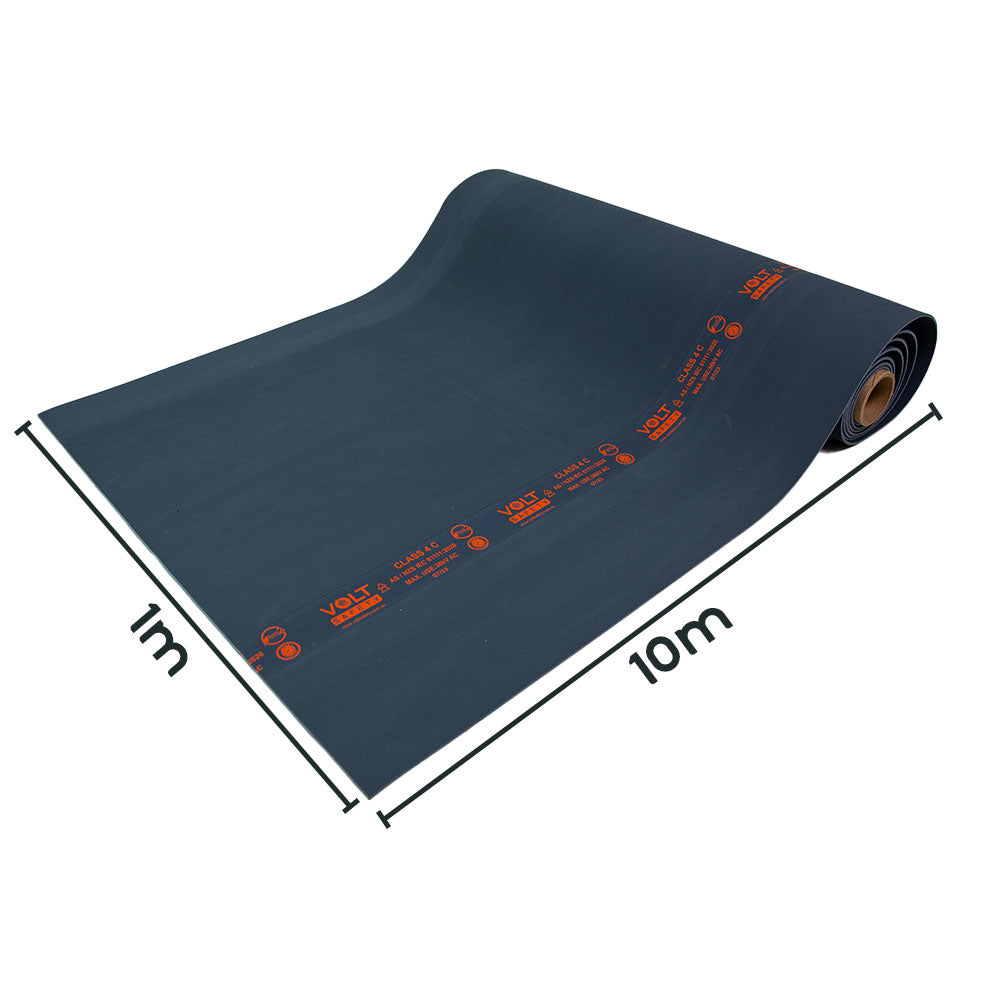

• Size: 1 m × 10 m (available per meter)

• Thickness: 5 mm

• Weight: 7.4 kg per m²

• Colour: Grey

• Manufactured from EPDM rubber for superior flexibility and insulation

• Resistant to ozone, acid, and low temperatures (Type C)

• Anti-slip finish on both sides for operator stability

• Suitable for custom cutting to length (1–10 m)

📘 Standards:

• AS/NZS IEC 61111

• IEC 61111

• Type C – Resistant to extremely low temperatures

💡 Options:

• Mat Roll-Up Bag – protects mat from UV, damage, and moisture during storage or transport

• Custom Size Cutting – available from 1 m to 10 m lengths

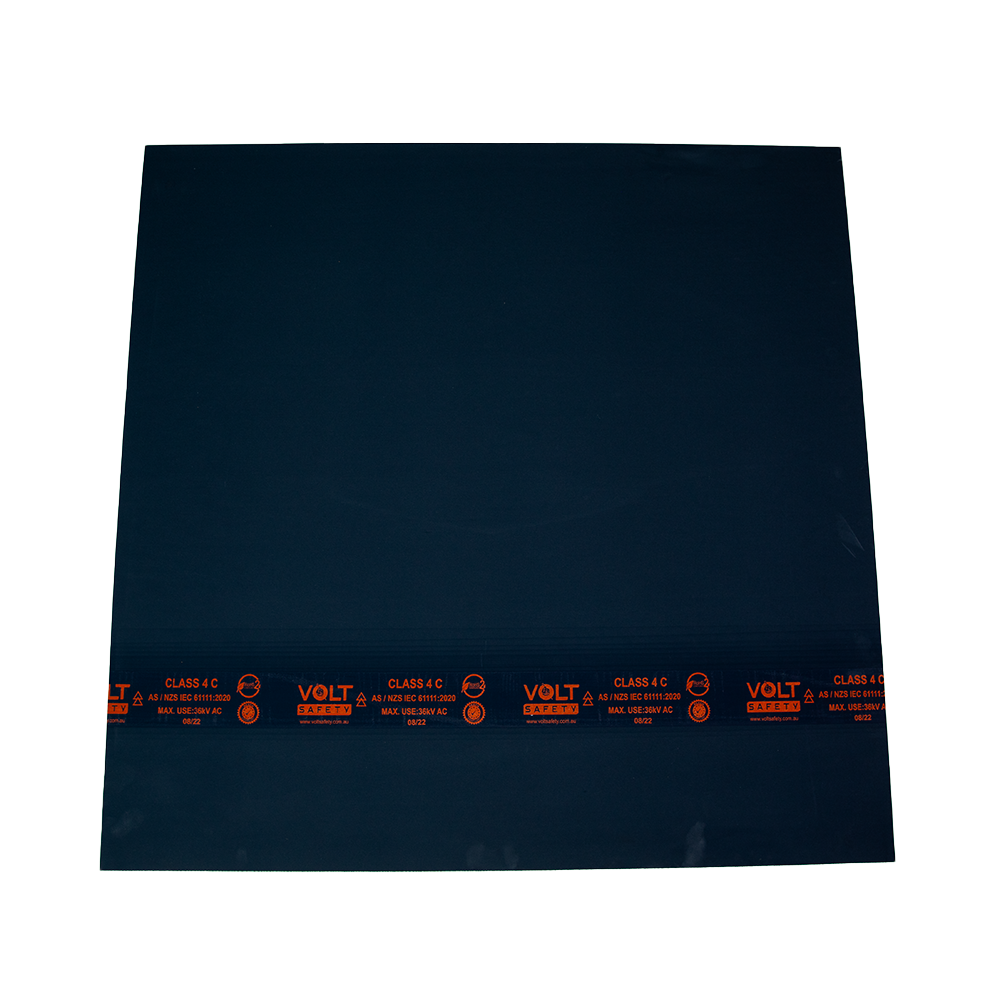

• Pre-cut 1 m × 1 m Mats – ready-to-use single panels for compact work areas

🦈 Safety Shark Tip:
Always use insulated mats when working near energized equipment. Store flat or rolled (never folded), keep surfaces clean and dry, and inspect regularly for wear, cracks, or contamination before every use.
