Tubular Lifting Cap

We do not keep this product in stock.

Please reach out to us directly to request a quote or more information.

Size
End Type

Tubular Lifting Caps – Heavy-Duty Thread Protection & Safe Handling

Our Tubular Lifting Caps are robust, precision-engineered solutions designed for the secure lifting, transport, and protection of tubulars, subs, cross-overs, and drill bits across drilling operations. Manufactured from high-strength ASTM A27 Grade 60-30 cast steel and heat-treated for added durability, these caps ensure reliable performance in demanding environments.

Each lifting cap features a machined finish with phosphate coating for corrosion resistance, and includes an integrated lifting bail for safe and efficient rig handling.

Available Variants:

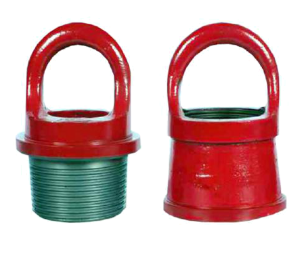

  • Pin End Lifting Caps

  • Box End Lifting Caps

  • Multiple thread types and sizes including 8-5/8" H90 (API standard)

Key Features:

  • 🔩 Thread Types: API standard (e.g., 8-5/8" H90)

  • ⚙️ Material: ASTM A27 Grade 60-30 Cast Steel, heat-treated

  • 💪 Strength: 60,000 psi tensile | 30,000 psi yield

  • 🧱 Weight: Approx. 10–20 kg (varies by size)

  • 🛠️ Finish: Machined & phosphate-coated

  • 🏗️ Integrated lifting bail for hoisting and transport

Applications:
Ideal for oil & gas, geothermal, and mining operations—especially for handling drill string components, bottom-hole assemblies, and cross-overs where thread protection and safe lifting are critical.
