Safety Shark  |  SKU: AL102-4

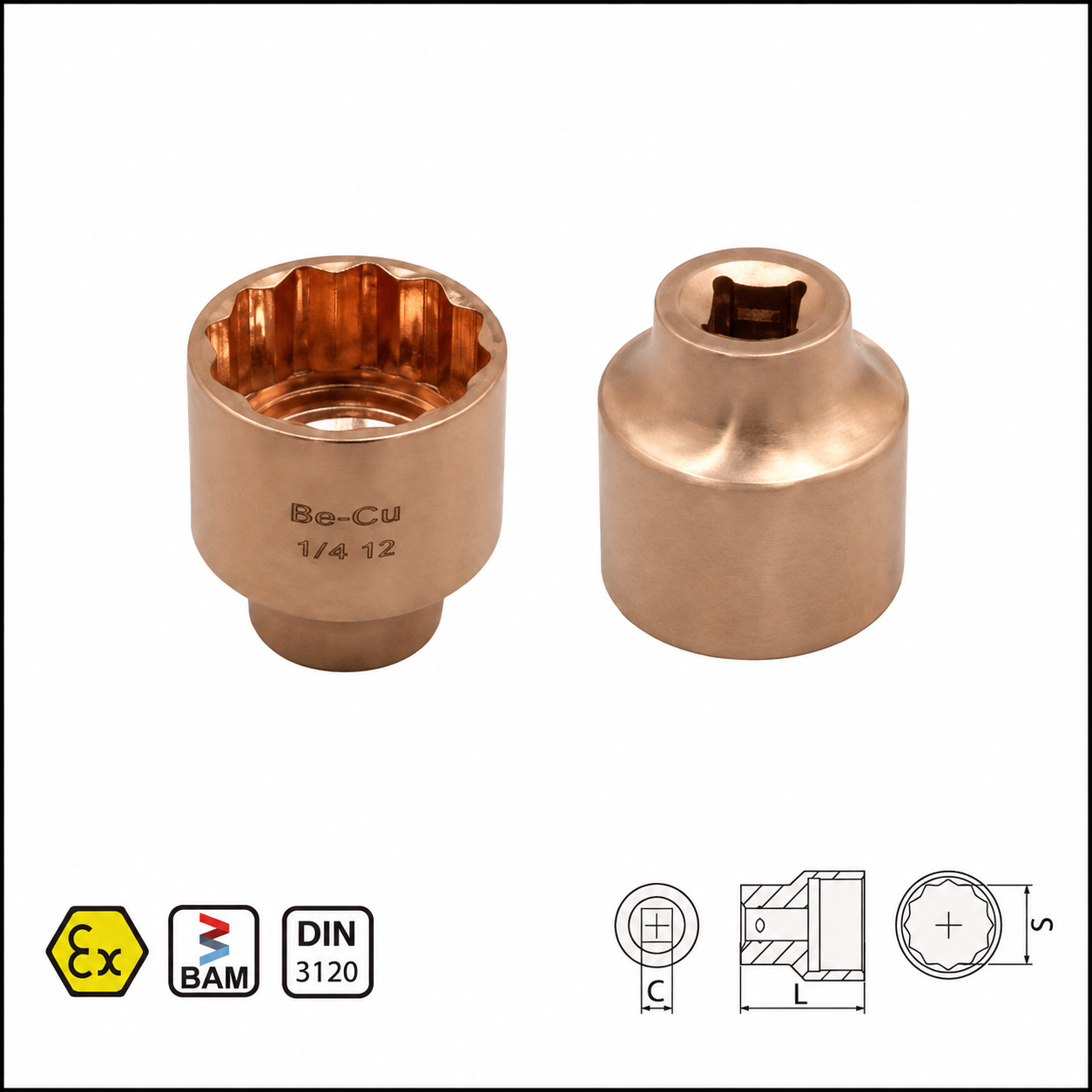

1/4" Drive Non-Sparking Socket – Metric

$1000 AUD
Tax included Shipping calculated at checkout.
Material
Socket Size

Description

The 1/4" Drive Non-Sparking Socket is designed for professional maintenance and mechanical applications where reducing the risk of mechanically generated sparks is important. Available in a comprehensive range of metric sizes from 4 mm to 19 mm, these individual sockets are ideal for building a customised non-sparking tool kit or replacing individual sockets within an existing set.

Manufactured in a choice of Aluminium Bronze (Al-Br) or Beryllium Copper (Be-Cu), the sockets combine reduced-sparking characteristics with corrosion resistance and durability for demanding industrial environments.

The 1/4" square drive is suited to smaller fasteners and equipment servicing where compact tool dimensions and controlled access are required.

Available Sizes & Specifications

Socket Size Length (L) Al-Br Item Code Be-Cu Item Code Al-Br Weight Be-Cu Weight
4 mm 25 mm AL102-4 BE102-4 15 g 17 g
4.5 mm 25 mm AL102-4.5 BE102-4.5 15 g 17 g
5 mm 25 mm AL102-5 BE102-5 15 g 17 g
5.5 mm 25 mm AL102-5.5 BE102-5.5 15 g 17 g
6 mm 25 mm AL102-6 BE102-6 15 g 17 g
7 mm 25 mm AL102-7 BE102-7 15 g 17 g
8 mm 25 mm AL102-8 BE102-8 15 g 17 g
9 mm 25 mm AL102-9 BE102-9 20 g 21 g
10 mm 25 mm AL102-10 BE102-10 20 g 22 g
11 mm 25 mm AL102-11 BE102-11 25 g 27 g
12 mm 26 mm AL102-12 BE102-12 27 g 30 g
13 mm 26 mm AL102-13 BE102-13 27 g 30 g
14 mm 26 mm AL102-14 BE102-14 32 g 35 g
15 mm 27 mm AL102-15 BE102-15 36 g 40 g
16 mm 27 mm AL102-16 BE102-16 36 g 40 g
17 mm 27 mm AL102-17 BE102-17 45 g 50 g
18 mm 27 mm AL102-18 BE102-18 45 g 50 g
19 mm 27 mm AL102-19 BE102-19 46 g 51 g

Material Options

Aluminium Bronze (Al-Br)

Aluminium Bronze provides reduced-sparking characteristics together with excellent corrosion resistance, strength and durability. It is a practical choice for general industrial maintenance applications where conventional steel tools may introduce an additional ignition risk.

Beryllium Copper (Be-Cu)

Beryllium Copper combines reduced-sparking characteristics with higher strength and hardness and is particularly suited to specialised applications where non-magnetic tool properties are required.

Key Features

  • 1/4" square drive
  • Metric sizes from 4 mm to 19 mm
  • Available individually for easy replacement or custom tool selection
  • Choice of Aluminium Bronze or Beryllium Copper
  • Reduced-sparking construction
  • Corrosion-resistant alloy materials
  • Compact design for smaller fasteners and restricted-access applications
  • DIN 3120 referenced by the manufacturer
  • Suitable for professional industrial maintenance

Applications

Suitable for maintenance and mechanical work across:

Oil & Gas • Drilling • Petrochemical • Refineries • Mining • Chemical Processing • Power Generation • Marine • Industrial Maintenance

Safety Notice: Non-sparking tools are designed to reduce the risk of ignition from mechanically generated sparks but do not eliminate ignition risk. Always follow applicable site procedures, hazardous-area assessments and safety requirements.

Image Disclaimer: Product images may be AI-generated or digitally enhanced for illustrative purposes and may not accurately represent the actual product. Please refer to the product specifications and technical information for exact details.
