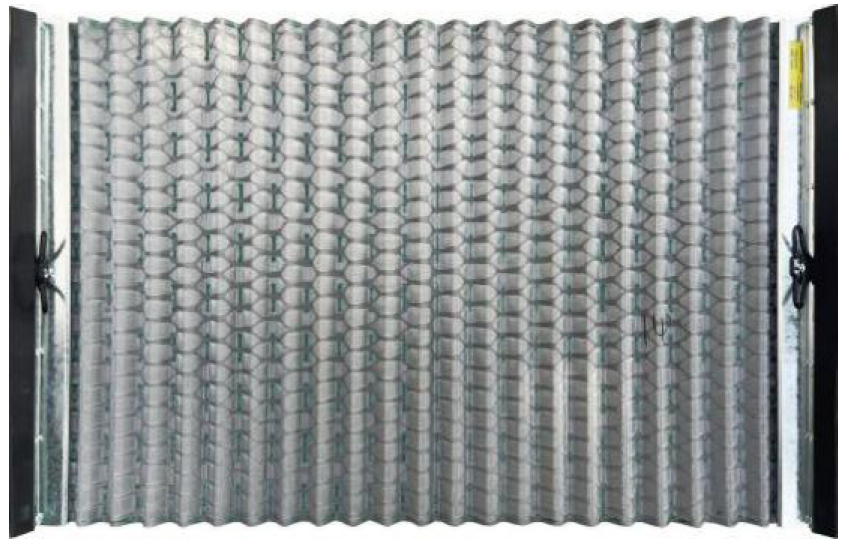

Aftermarket Replacement Shaker Screen for Derrick 500 PMD – API RP 13C Compliant

Derrick 500 PMD Replacement Shaker Screen

Maximise solids control efficiency and fluid recovery with the 500 Series PMD Replacement Shaker Screen. Designed as a high-performance aftermarket equivalent for Derrick Flo-Line Cleaner 503/504 & 513/514 shakers, this screen delivers superior throughput, fine cut-point accuracy, and reliable service life—without requiring equipment modifications.

Key Features

API RP 13C Compliant – Fully tested for D100 cut point, conductance, and non-blanked open area.
Optimised Screen Cloth Options

• DX (Extra Fine): Maximises flow while preserving cut-point integrity and reducing near-size blinding.

• HP (High Performance): Pyramid-style slotted openings generate significantly increased capacity.

• DF (Fine): Longer screen life with consistent separation efficiency.

Pyramid Corrugated Configuration – Provides greater surface area and permeability vs. traditional flat screens.
Heavy-Duty Build – Manufactured using SS304/SS316 stainless steel cloth and DC03 steel backing for strength and longevity.
Broad Mesh / API Range – Available from API 20–325, covering everything from high-volume scalping to ultra-fine solids control.

Specifications

Performance Benefits

• Increased shaker capacity and flow efficiency

• Faster separation and reduced mud losses

• Enhanced cut-point accuracy and solids removal

• Reduced screen blinding and maintenance downtime

• Extended operational life in harsh drilling conditions

• Drop-in replacement for OEM screen systems

API Sizes Available

Full API range 20–325, including certified D100 micron ratings, conductance values, and open-area performance to match drilling requirements and mud system conditions.

Compatibility Disclaimer

This replacement screen is designed for Derrick 500 Series equipment but is not an OEM Derrick® product. It is engineered for full functional compatibility and performance with Derrick FLC 503/504 & 513/514 shakers.
