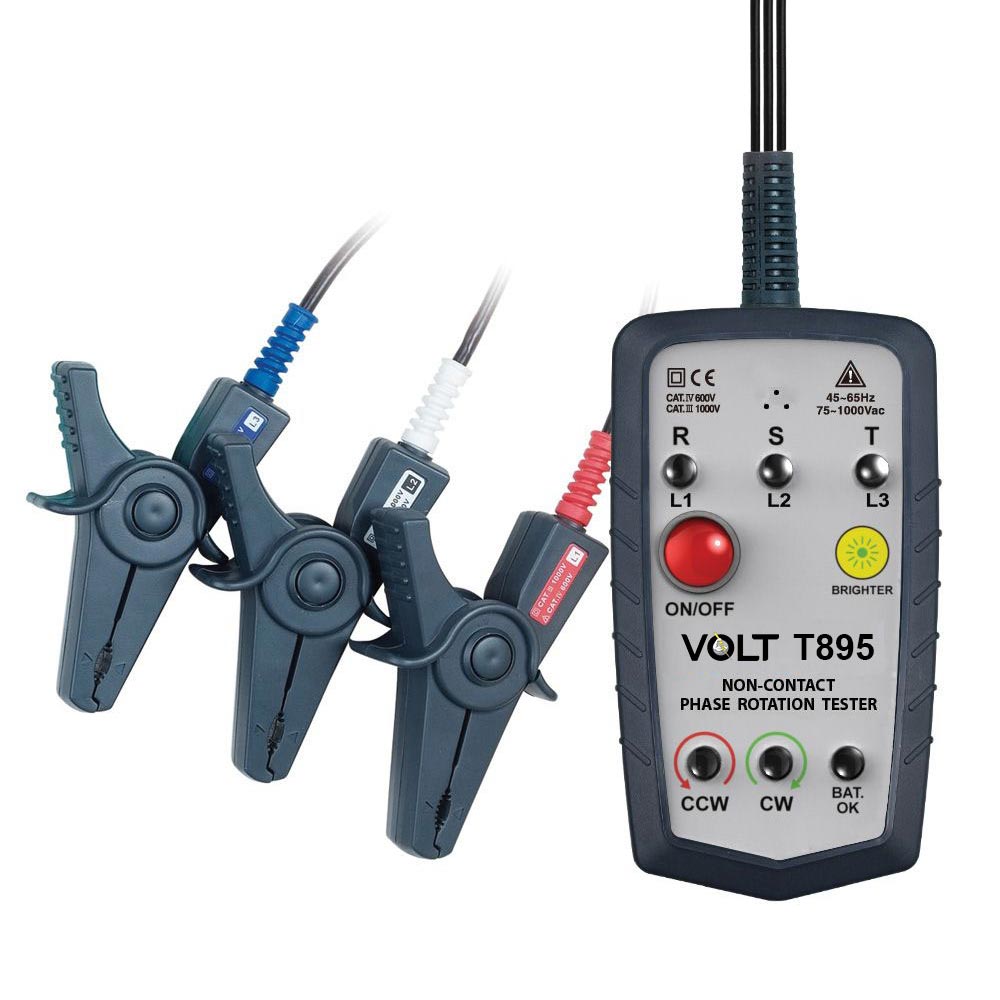

Non-Contact Phase Rotation Tester – Volt Safety

Identify phase sequence safely and efficiently with the Volt Safety Non-Contact Phase Rotation Tester — a professional tool built to verify correct phase order and detect open phases in three-phase electrical systems without making metal contact.

Engineered for precision and protection, this tester combines visual LED indicators and a loud buzzer alert to provide fast, reliable feedback even in noisy or bright environments. Its non-contact design eliminates the risk of accidental shocks, making it a must-have for electricians, linemen, and industrial maintenance teams.

✅ Key Features:

• Non-contact design for maximum operator safety

• Detects phase sequence and open phases in three-phase systems

• Measurement range: 75 VAC – 1000 VAC

• Frequency range: 45 Hz – 65 Hz

• Bright LED indicators with brightness adjustment for outdoor use

• Audible buzzer alert for clear feedback

• Compact and lightweight: 127 × 72 × 44 mm, 400 g

• 800 mm cable length with 33 mm clip jaw opening

• Powered by one 9 V battery

• Operating temperature: 0 °C – 40 °C

📏 Standards & Ratings:

• Safety Rating: EN 61010-1 CAT III 1000 V / CAT IV 600 V

• Compliance: EN 61326-1, EN 61557-1, EN 61557-7

• Ingress Protection: IP40

💼 What’s Included:

• Volt Safety Non-Contact Phase Rotation Tester

• 9 V battery

• User manual

🦈 Safety Shark Tip: Always verify phase rotation before energizing equipment — incorrect sequencing can cause reverse motor rotation and serious equipment damage.
